TK36 CNC lathe watch video
Product Description:

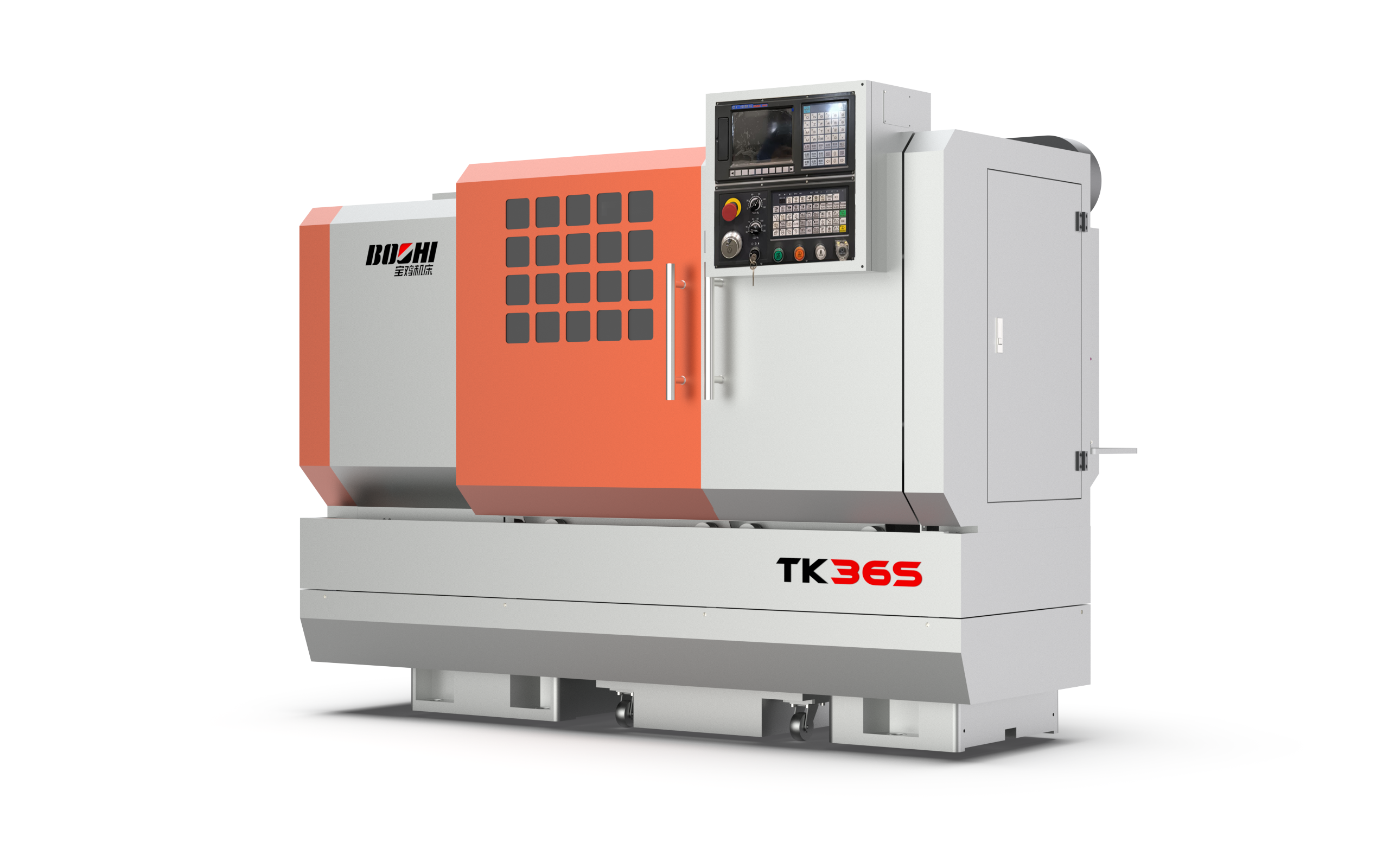

TK36 series CNC lathe is controlled by GSK control and driven by servo motors. It has two 2 controllable axes. Operations of internal and external turning, taper turning, circular surface turning, facing, inch and metric threading are performed. Standard equipment---4-station vertical power turret meets different cutting requirements. The sliding door and a variety of caution plates guarantee operator’s safety. The lathe applies to light and manufacturing engineer industries for speedy and efficient machining of small/medium size workpieces especially nonferrous metals, or for teaching and training purposes in colleges


Technical Specifications:

Description

TK36S

Capacity

Max. swing over bed (mm)

Φ360

Max. swing over slide (mm)

Φ180 (4/6-station)/Φ105 (comb type tool rest)

Φ120 (rear-mounted tool rest in case of 4-station)

Max. turning dia. (mm)

Φ320 (4-station, comb type tool rest)/ Φ220 (6-station)

Distance between centers (mm)

750/690(6-station)/650*

Max. turning length (mm)

600/540(6-station)/500*

Spindle

Spindle thru-hole (mm)

Φ57

Spindle nose

D type No.6 manual chuck

ISO702/I A2-5 6″ hyd. chuck

ISO702/I A2-6 8″ hyd. chuck

Rotation sped of spindle (r/min)

140-3000(infinite variable speed)

Max. output torque of spindle (N·m)

83

Chuck dia. (mm)

Φ200

Power of main motor (kw)

5.5

5.5

Tailstock

Dia./ travel of quill (mm)

Φ55/120 (100 hyd. tailstock); Φ75/150* (130* hyd. tailstock)

Taper of center

MT No.4/ MT No.5*

Carriage

Travel X/Z (mm)

200(150 6-station)/610/550(6-station)/510*

Rapid traverse X/Z (m/min)

6/8

Turret

Number of stations/type

4 (vertical)/6 (horizontal, optional)

Dia. of boring tool (mm)

20×20

Tool section (mm)

Φ32

Others

Power source (kVA)

12 kVA

Belt of main motor

3V-670

SPZ1987

Dimension (L×W×H) (mm)

2150×1260×1600

Total weight (kg)

1700

Max. machining weight (supported by tailstock center) (kg)

550(Ф200 manual 3-jaw chuck), 360(6" hyd. chuck), 550(8" hyd. chuck)
